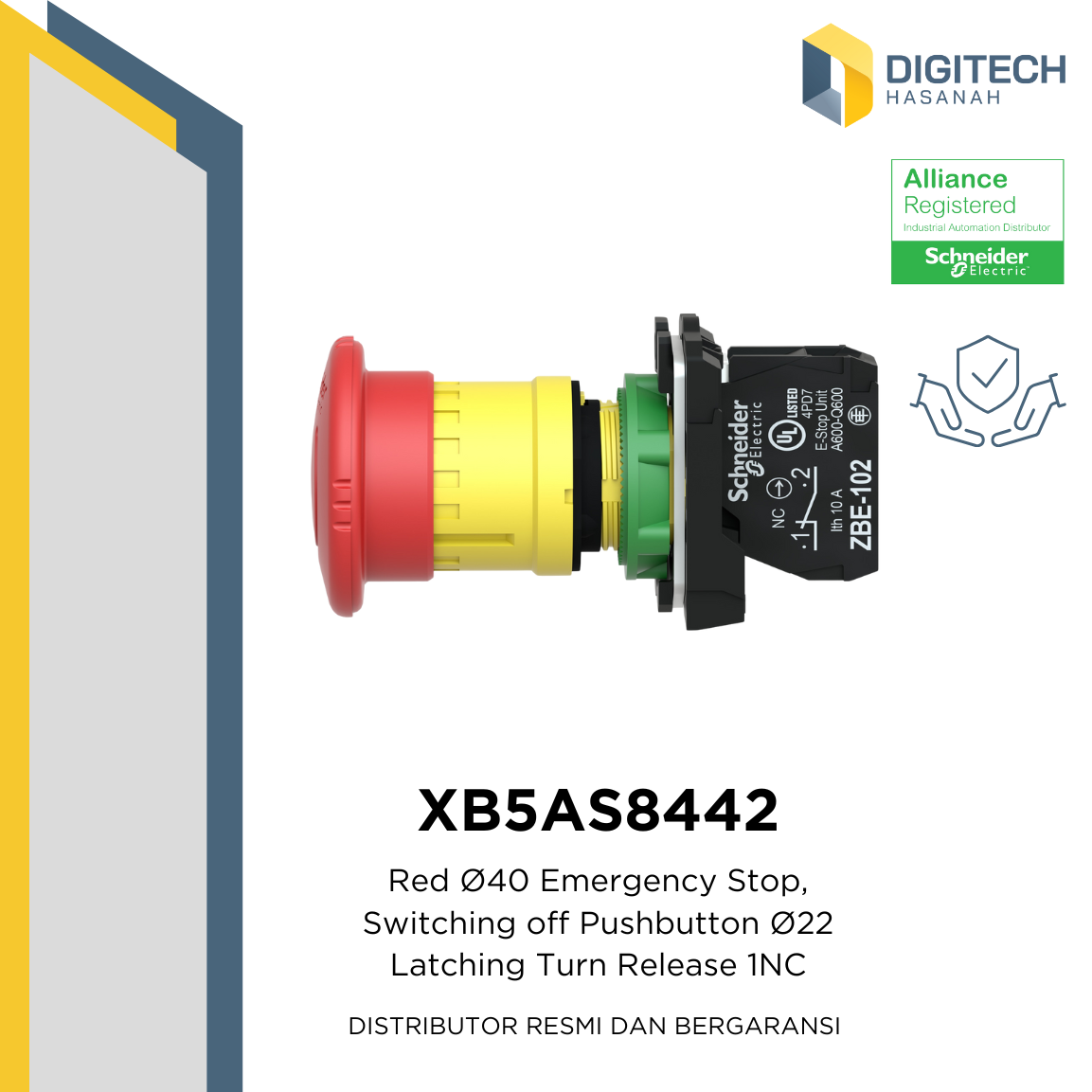

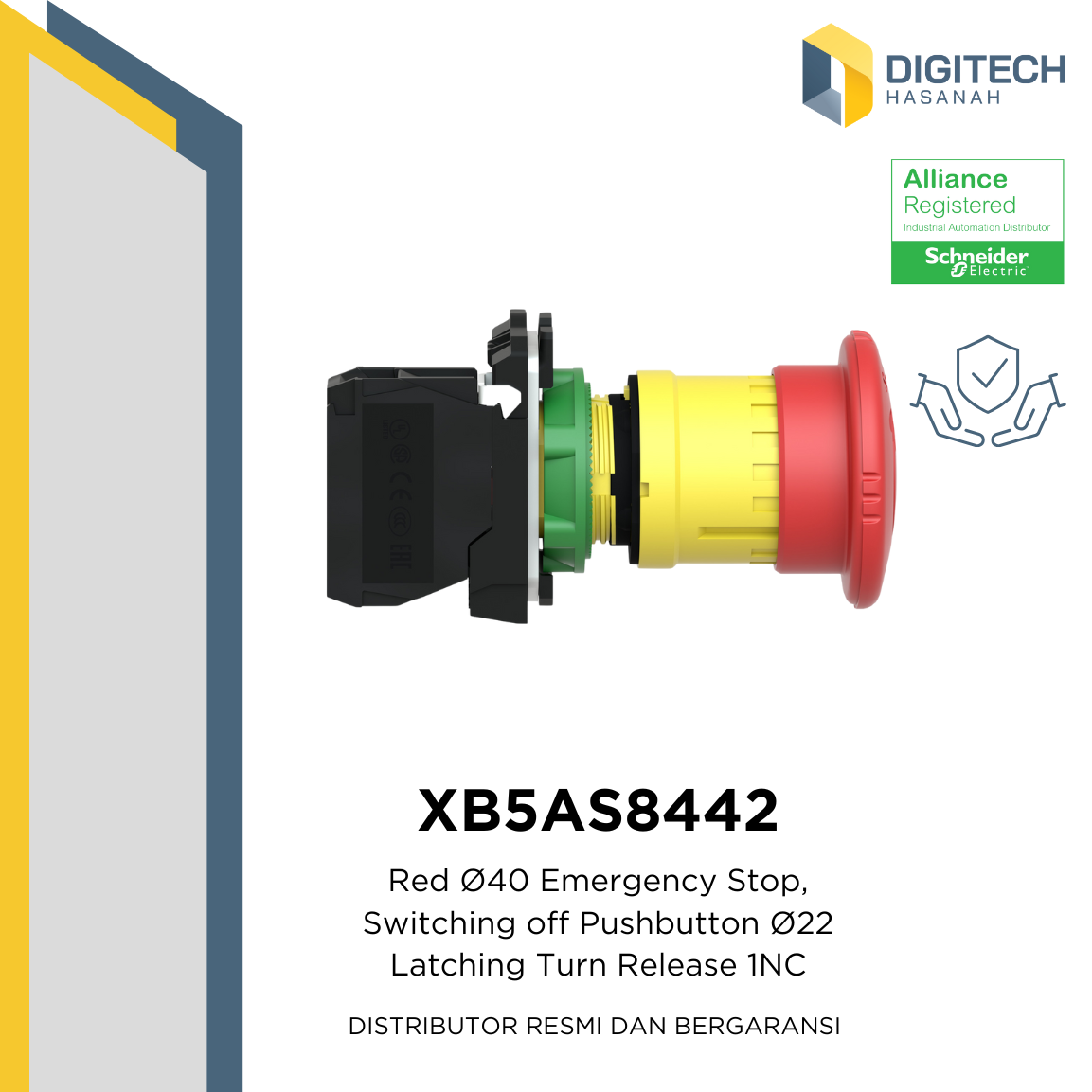

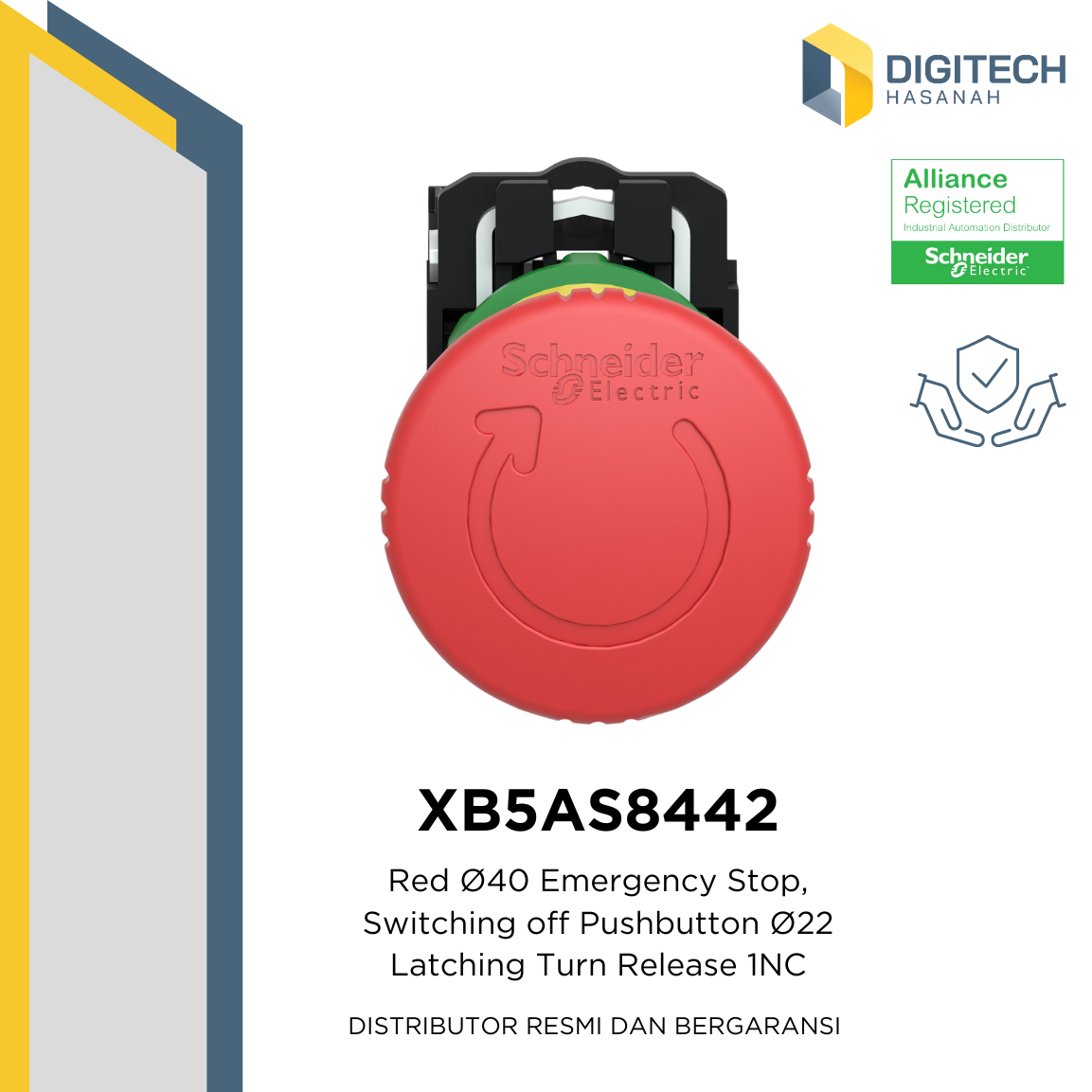

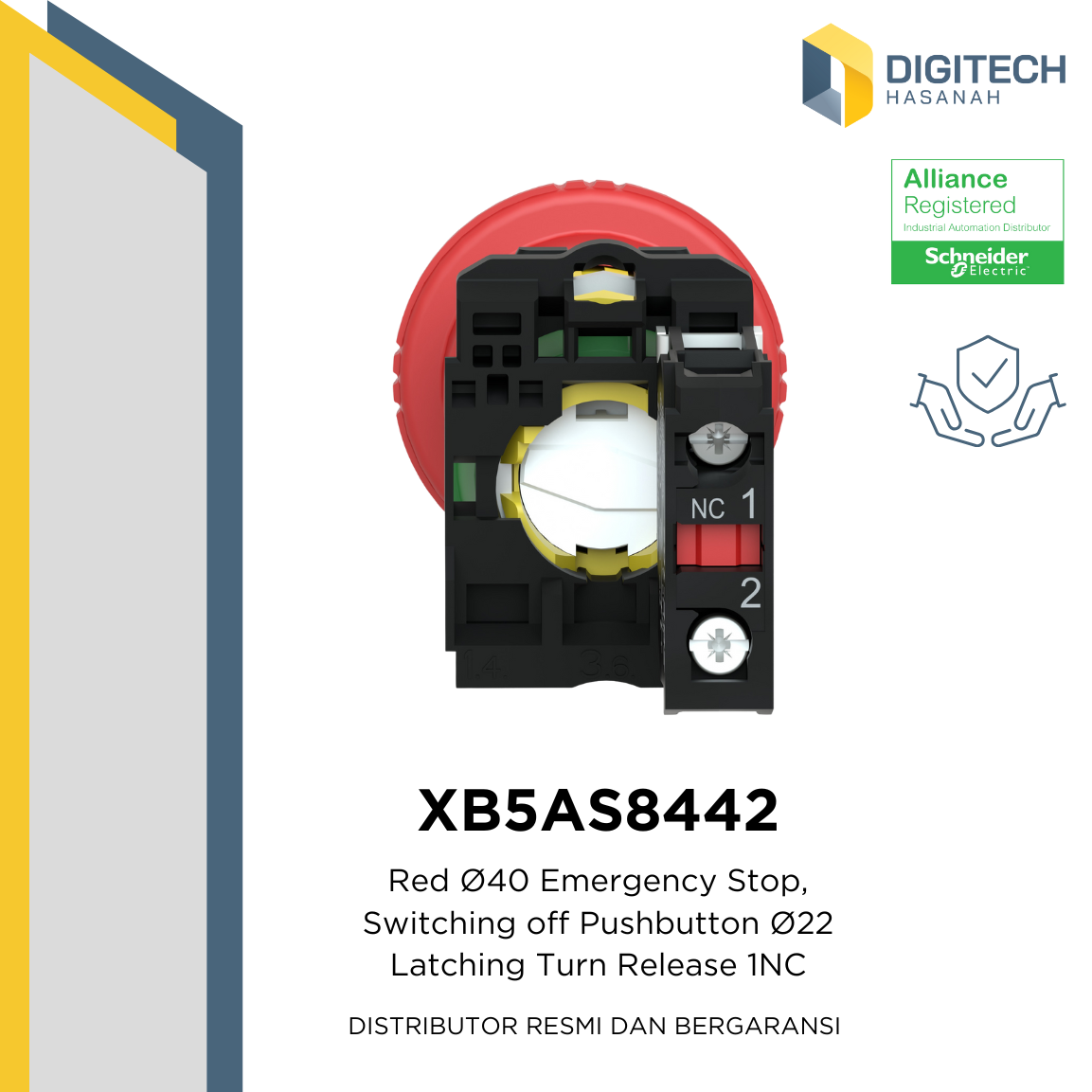

XB5AS8442 Red Ø40 Emergency Stop, Switching Off Pushbutton Ø22 Latching Turn Release 1NC
Spesifikasi :
Range of product : Harmony XB5 Product or component type : Emergency switching off push-button Emergency stop push-button
Device short name : XB5
Bezel material : Dark grey plastic
Fixing collar material : Plastic
Head type : Standard
Mounting diameter : 22 mm
Sale per indivisible quantity : 1
Shape of signaling unit head : Round
Type of operator : Trigger action and mechanical latching
Reset : Turn to release
Operator profile : Red mushroom Ø 40 mm, unmarked
Contact operation : Slow-break
Connections - terminals : Screw clamp terminals, lt;= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, gt;= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Device presentation : Complete product
Produk dijamin ASLI dan Bergaransi Original Produk Schneider Electric Mohon tanya ketersediaan produk sebelum membeli.
